315/80R22.5 ALLIANCE DUAL MASTER 506 158A8 I-2 TL

Description

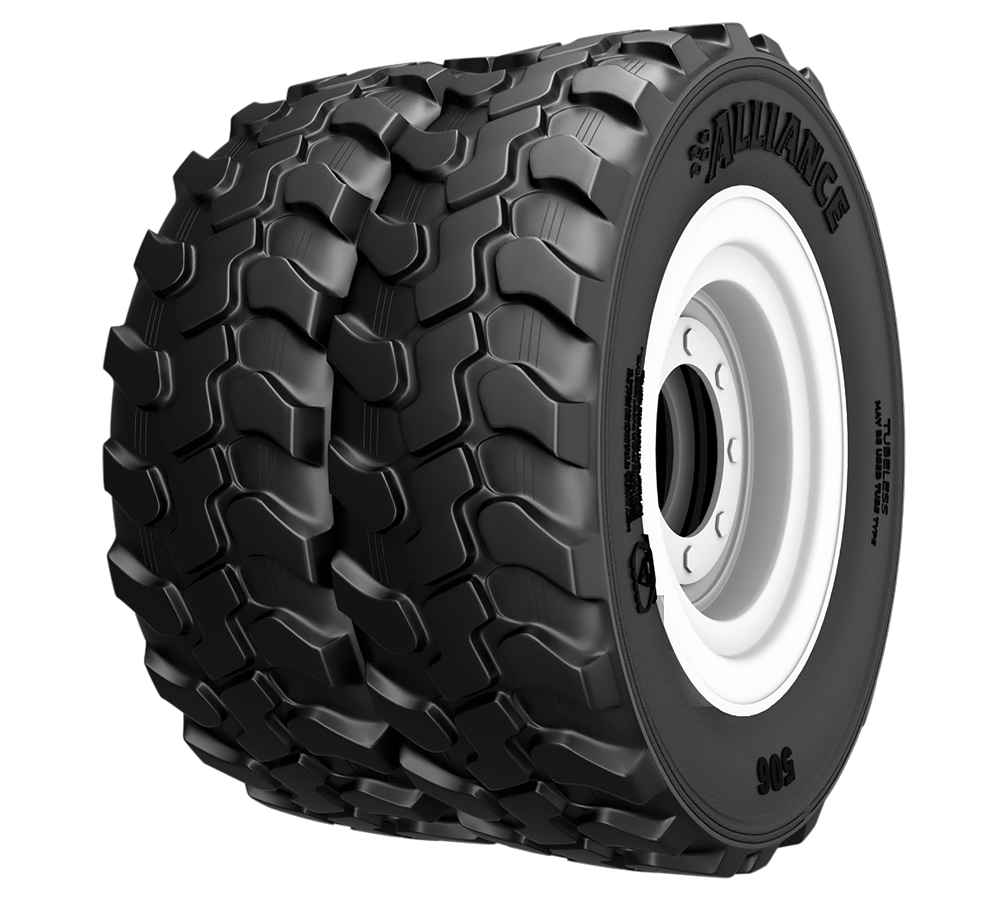

The Alliance 506 Dual Master tyre has been designed for use with excavators and unimogs working in construction and industrial applications, particularly as a dual tyre configuration for excavator machines. The unique sidewall construction allows for close contact between the tyres helping to prevent stone penetration thereby removing the need for a spacer. The tread design, with high shoulder lugs, provides good traction on soft surfaces whilst the large lug in the centre line adds stability on hard surfaces and improves roadability and driver experience. The all-steel radial construction helps provide strength and increased puncture resistance, extending the tyre's durability and life cycle.

Features

  • Radial tyre for excavator dual configurations.
  • Unique sidewall construction for close contact between tyres to prevent stone penetration.
  • Good traction on soft surfaces and stability on hard surfaces.
  • All-steel radial construction for strength and increased puncture resistance.
  • Retreadable casing to extend tyre's life cycle.

Specification

Application
PLANT
Size
315/80R22.5
Brand
ALLIANCE
Pattern
DUAL MASTER 506
Load/Speed Index
158A8
TT/TL
TL
Construction
RADIAL
Nominal Section Width
315
Profile
80
Rim
22.5
TRA
I-2
Recommended Rim
9
Section Width
330 mm
Overall Diameter
1100 mm
Static Load Radius
509 mm
Rolling Circumference
3366 mm
Tread Depth
25.00 mm
Max Load (KG)/Speed (KM/H) 1
4250/40
Inflation Pressure Bar
9.00
Specification 1
ALL STEEL
ECE 106
Yes
